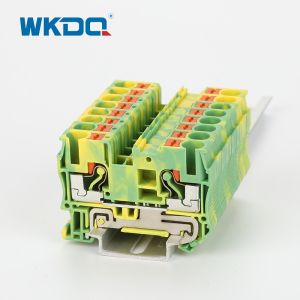

JPT 6-PE Phoenix Push In Terminal Block Connector PT Feed Through Grounding Protective PE Modular Green and Yellow

JPT 6-PE Phoenix PT 6 Ground Terminal

JPT 6-PE Din Rail PT Feed Through Grounding Push In Protective PE Modular Terminal Blocks Fast Wiring

1. DESCRIPTION

The ground push-in terminal blocks can be establish PE connection easily: simply snap onto the DIN Rail.The new PUSH IN modular terminal blocks with their simple handling and compact yet clear design, allow you to benefit from faster installation times and much higher productivity.

Vibration proof.

Safety design.

Build-in push button.

Shock resistance & Corrosion resistance.

Suitable for various applications.

The insertion force can be saved by 50%.

Made from engineering anti Inflaming Nylon PA 66, Brass conductor.

The Push-in connection terminal blocks are tool-free wiring of conductors with ferrules or solid conductors.

The compact design and front connection enable wiring in a confined space.

Easy operation and use: can be snapped onto the DIN Rail.

2.TECHNICAL PARAMETERS

Model Number	JPT 6-PE
Color	Grey, Blue, other color can be customized
Length/Height/Wide (mm)	57.7/43.5/8.2
Connection method	Push-in connection
Material	Nylon PA66
Rated Voltage/Current	1000V/57A
Cross, solid/stranded wire	0.5-10mm² / 0.5-6mm²
Conductor Size	20-8 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
Brand	WonkeDQ
Packing Detail	20.52g/pc, 50PCS/BOX
Certification	CE,RoHS,CQC,ISO 9001
